Automatic Hot Ink Roll Coder with 35 Meters per Minute Speed and Compact Size for Expiry Date Printing

Automatic Hot Ink Roll Coder with 35 Meters per Minute Speed and Compact Size for Expiry Date Printing

35 Meters per Minute Hot Ink Roll Coder

Automatic Expiry Date Printer

Compact Size Coding Machine

สถานที่กำเนิด:

เซี่ยงไฮ้จีน

ชื่อแบรนด์:

DIKAI

ได้รับการรับรอง:

CE; ISO 9001

ติดต่อเรา
ขอทุน
รายละเอียดสินค้า
แรงดันไฟฟ้า:
AC 220V
ขนาด:
120*100*170 มม
น้ำหนัก:
3 กิโลกรัม
พื้นที่พิมพ์:
สูงสุด 13 บรรทัด 20 ตัวอักษร/บรรทัด
ความเร็วในการพิมพ์:
สูงถึง 300 PPM
ความเร็วพื้นผิว:
สูงสุด 35 เมตร/นาที
พาวเวอร์ซัพพลาย:
AC100-AC230V 50/60 เฮิรตซ์
สายพิมพ์:
สามารถเลือกมือซ้าย/ขวาได้
ขนาดหน่วยเครื่องพิมพ์:
120 มม. * 100 มม. * 170 มม. (ยาว * กว้าง * สูง)
ขนาดคอนโทรลเลอร์:
180 มม. * 180 มม. * 102 มม. (ยาว * กว้าง * สูง)
สีหมึก:
ดำ, ขาว, น้ำเงิน, แดง
สิ้นเปลือง:
ม้วนหมึกร้อน
ส่วนประกอบหลัก:
พีซีบอร์ด
ประเภทขับเคลื่อน:
ไฟฟ้า
เกรดอัตโนมัติ:
อัตโนมัติ
เน้น:

35 Meters per Minute Hot Ink Roll Coder

,

Automatic Expiry Date Printer

,

Compact Size Coding Machine

เงื่อนไขการชำระเงินและการจัดส่ง
จำนวนสั่งซื้อขั้นต่ำ
1
ราคา
US$450-600
เวลาการส่งมอบ
5-8 วันทำการ
คำอธิบายสินค้า

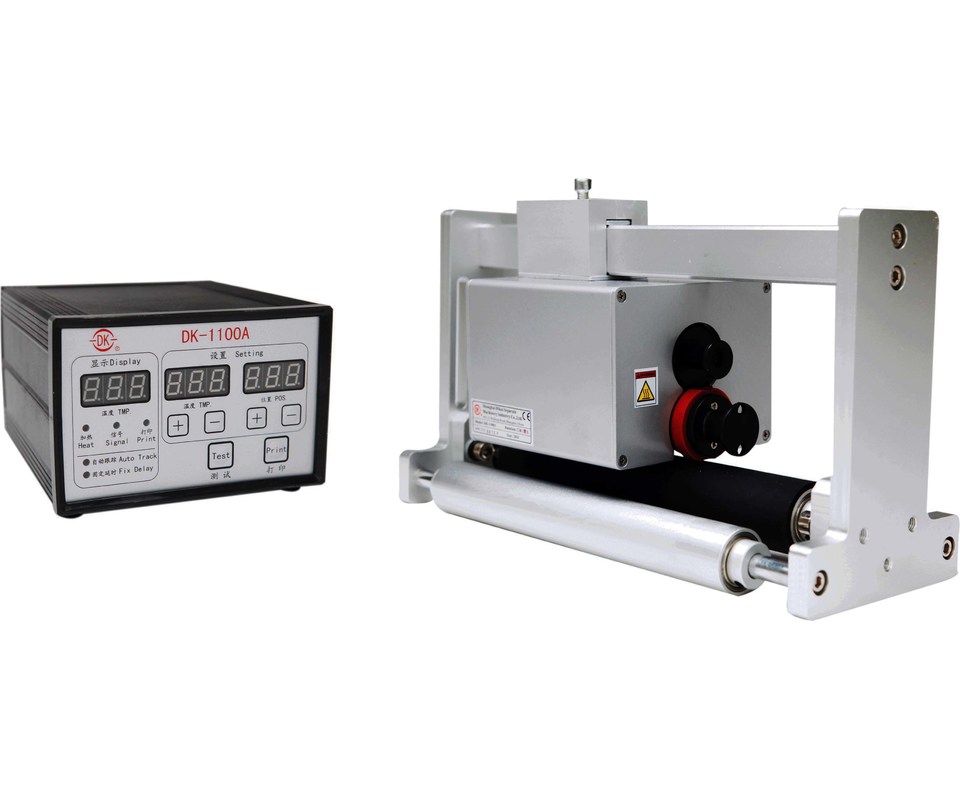

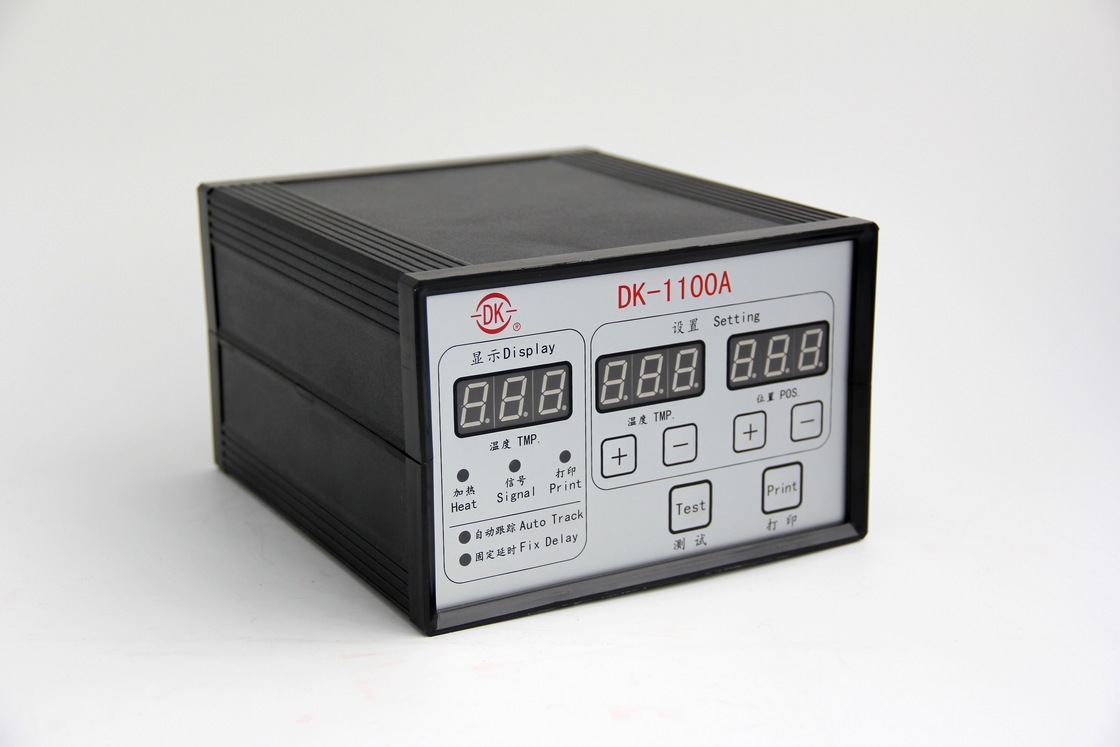

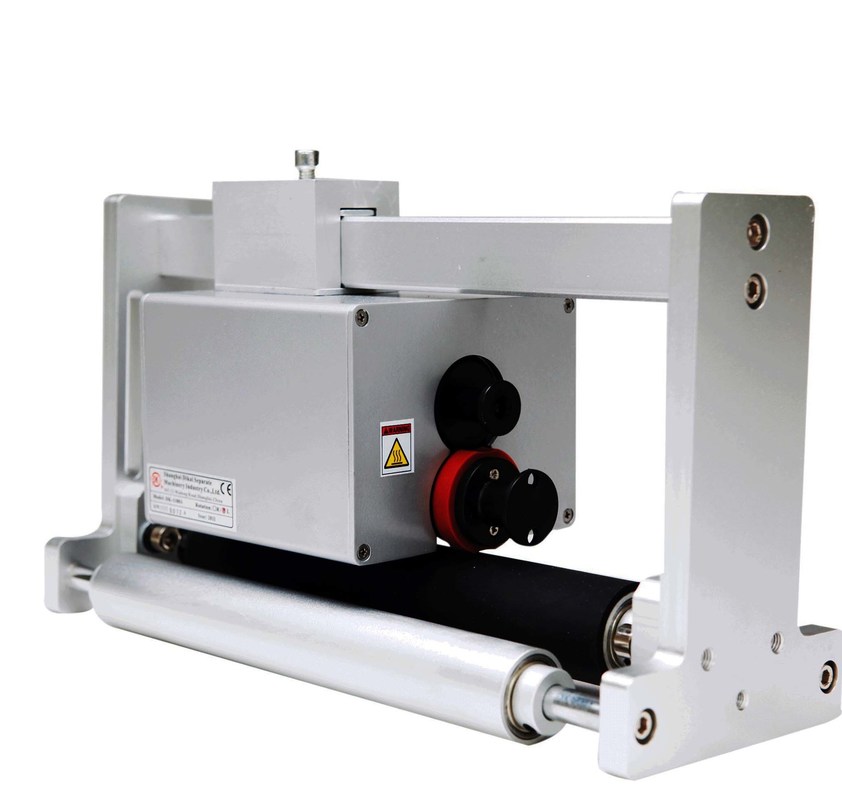

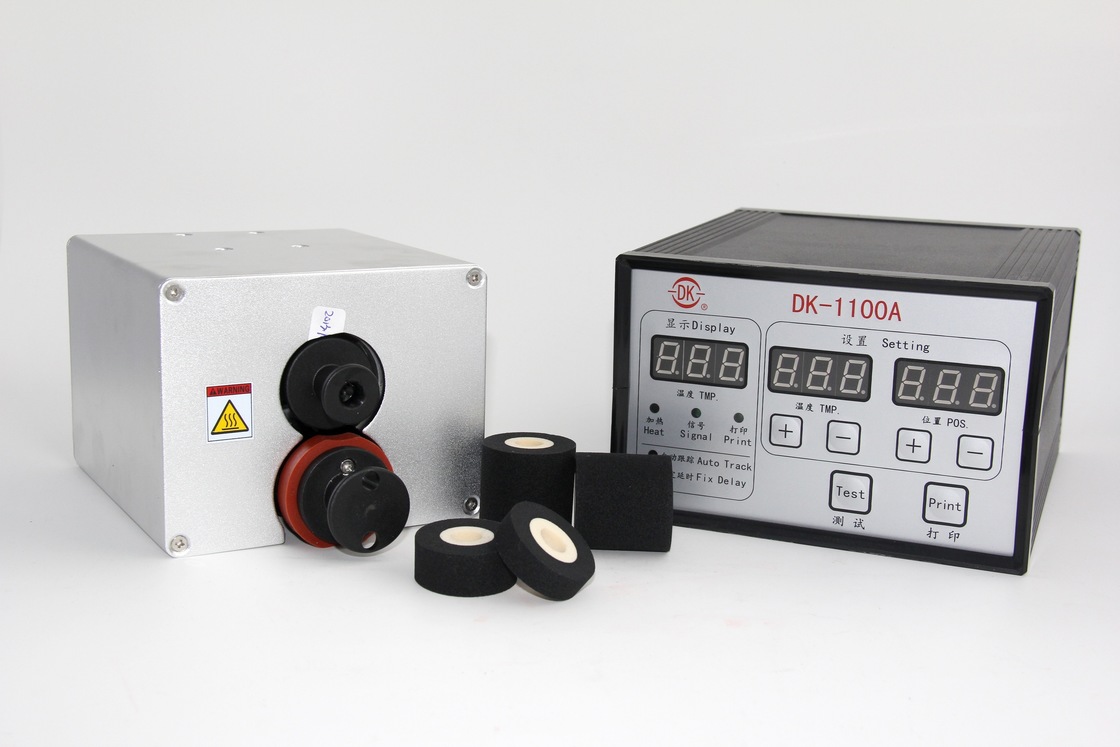

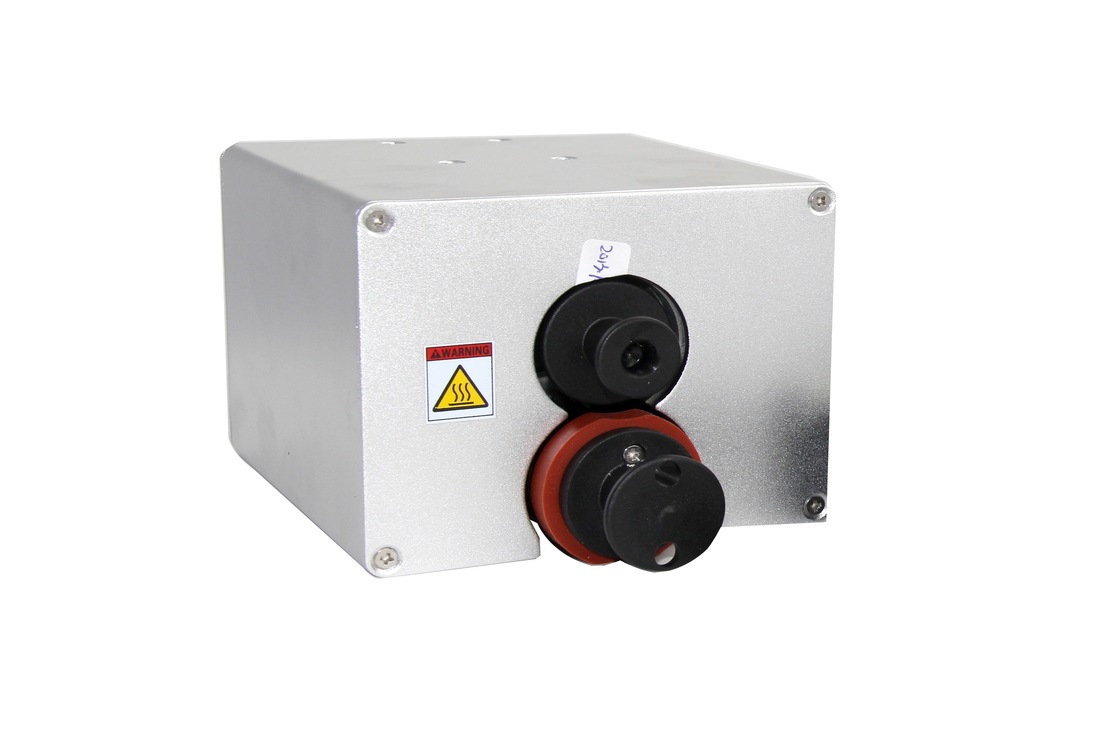

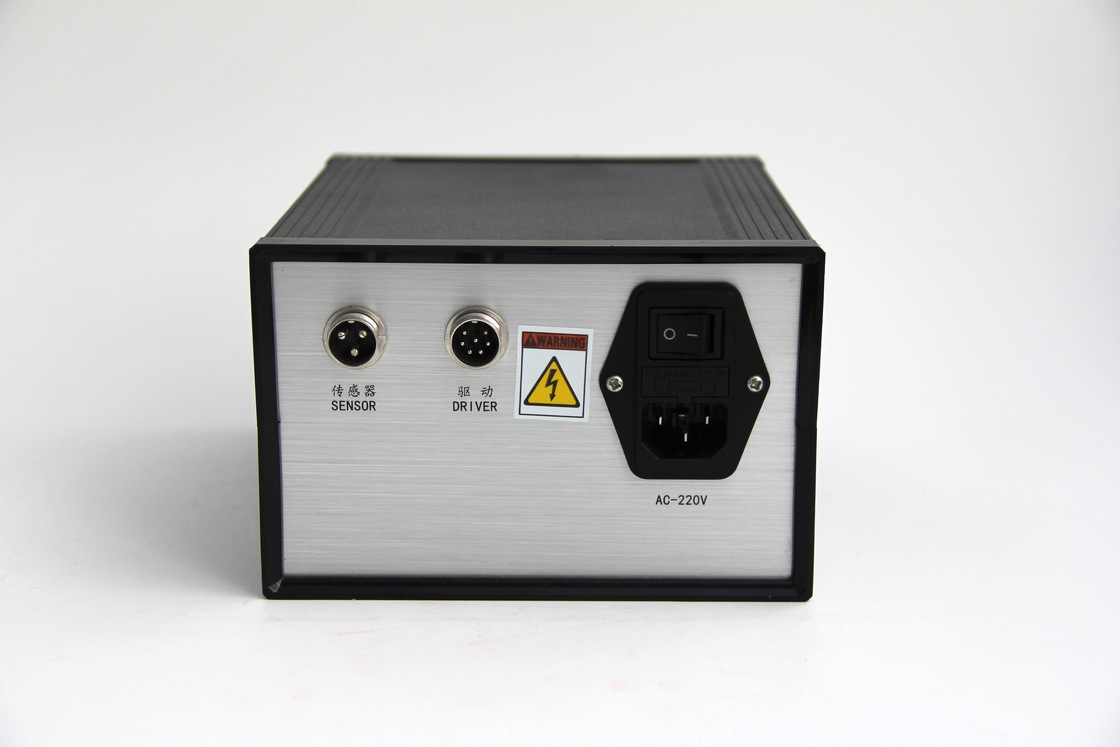

DIKAI DK-1100A Expiry Date Printer
Product Overview

The DK-1100A Expiry Date Printer is an electronic continuous motion coder designed for integration with packing machines, capable of printing at speeds up to 300 PPM. With a print area supporting up to 13 lines, it efficiently prints MFG/EXP dates, lot numbers, and other essential information on flexible packaging films. Widely used in industries including food, daily chemicals, tissue products, rice, and seeds. Since its 2011 launch, over 100,000 units have been sold, establishing it as a nearly maintenance-free solution that significantly reduces operational costs.

Key Features
  • High-speed operation up to 300 PPM
  • Consistent and stable printing quality
  • Low mechanical wear for reduced maintenance
  • Compact design for easy integration
  • Simple installation and user-friendly operation
Automatic Hot Ink Roll Coder with 35 Meters per Minute Speed and Compact Size for Expiry Date Printing 0 Automatic Hot Ink Roll Coder with 35 Meters per Minute Speed and Compact Size for Expiry Date Printing 1
Installation on Flow Packer
Automatic Hot Ink Roll Coder with 35 Meters per Minute Speed and Compact Size for Expiry Date Printing 2
Print Sample
Automatic Hot Ink Roll Coder with 35 Meters per Minute Speed and Compact Size for Expiry Date Printing 3
Mounting Bracket (Optional)
Technical Specifications
Model Number DK-1100A Expiry Date Printer
Print Contents MFG/EXP date, Lot Number, Serial Number
Print Area Max 13 lines, 20 characters/line
Print Speed Up to 300 PPM
Surface Speed Max 35 meters/minute
Power Supply AC100-AC230V 50/60 Hz
Print Direction Left/Right Hand Optional
Printer Unit Dimensions 120mm*100mm*170mm (L*W*H)
Controller Dimensions 180mm*180mm*102mm (L*W*H)
Automatic Hot Ink Roll Coder with 35 Meters per Minute Speed and Compact Size for Expiry Date Printing 4 Automatic Hot Ink Roll Coder with 35 Meters per Minute Speed and Compact Size for Expiry Date Printing 5 Automatic Hot Ink Roll Coder with 35 Meters per Minute Speed and Compact Size for Expiry Date Printing 6
After-Sales Service
Automatic Hot Ink Roll Coder with 35 Meters per Minute Speed and Compact Size for Expiry Date Printing 7
  • Comprehensive R&D support
  • Detailed operation manual guidance
  • 24-hour professional online support
  • Video tutorial support
  • Potential on-site support when required
Frequently Asked Questions
Why choose Dikai?
With 25 years of experience in developing, manufacturing, and selling quality coding machines and consumables, we are committed to meeting every customer's unique marking requirements.
What's the regular lead time?
Standard lead time is 1-2 weeks after order confirmation. Stocked items ship within 2 working days.
What's the warranty period?
Standard warranty covers 12 months from leaving our warehouse.
After-sales service?
We provide distributor-supported services in local markets, supplemented by online technical support and continuously updated video resources.
